AT-600P (Receiver with Pushbutton Panel)

Technical & Radio Data:

Frequency:　　　868MHz/ 915Mhz

Numbers of available relay outputs: 8 output relays & Stop

Relay rating: Up to 20A

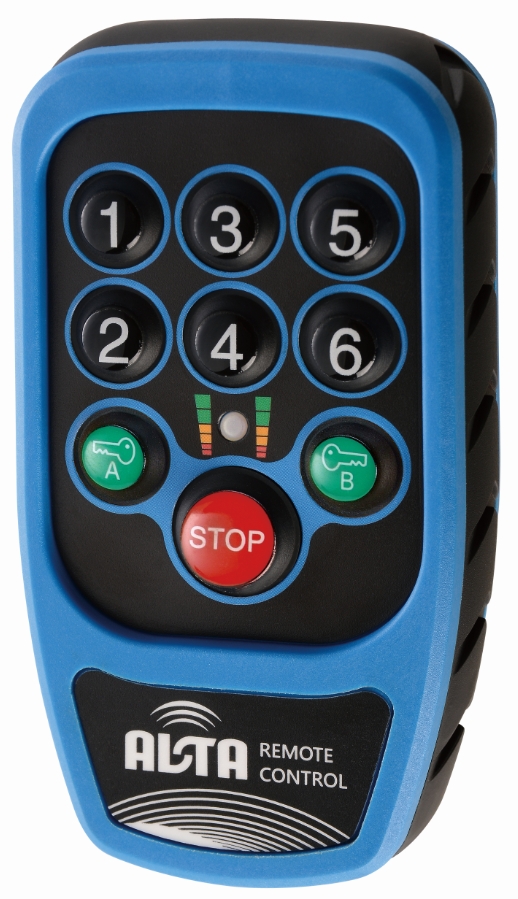

Transmitter power supply: 2AA Battery (Rechargeable Ni-MH/ Alkaline)

Receiver power supply: 10~42 VDC

Functioning temperatures: From -40c~ +85c

Reaction Time: less than 0.1 Sec

Antenna type: Internal Antenna

LED power Indicator: 3 stages power indicator ( Full, Middle, Low)

Transmitter Dimension( H X LX W)/Weight: 39mmx112mmx62mm/ 135g(w/o batteries)

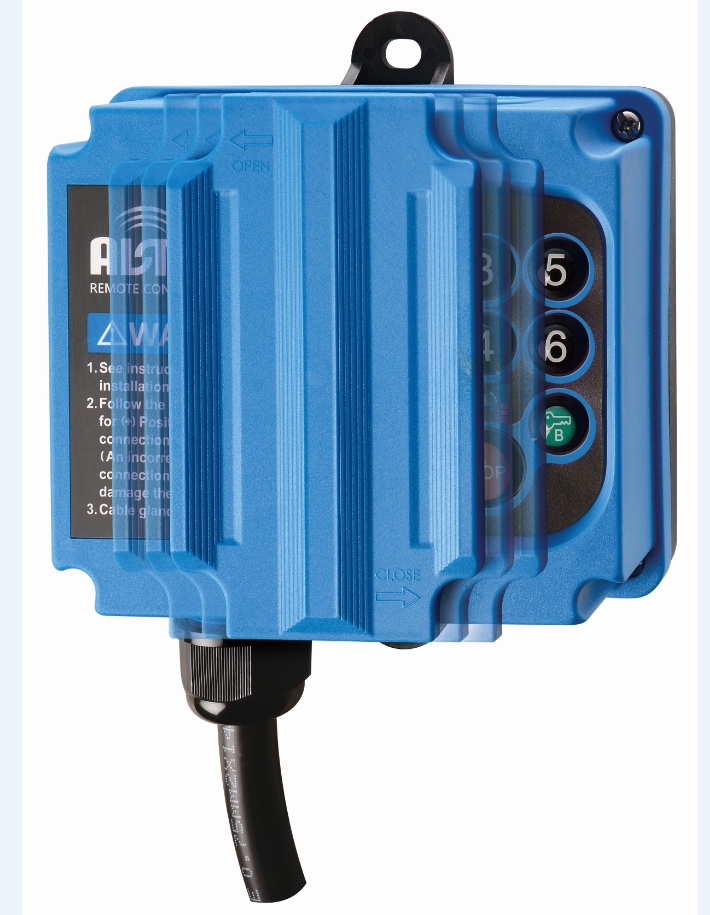

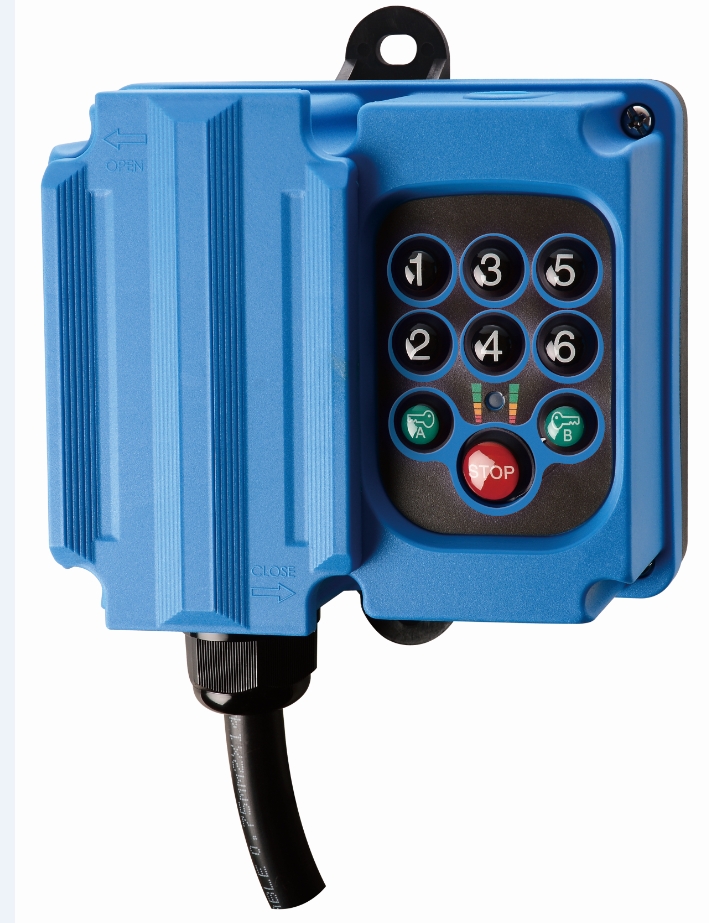

Receiver Dimension ( H X LX W)/ Weight: 64mmx130mmx146mm (with Panel)
